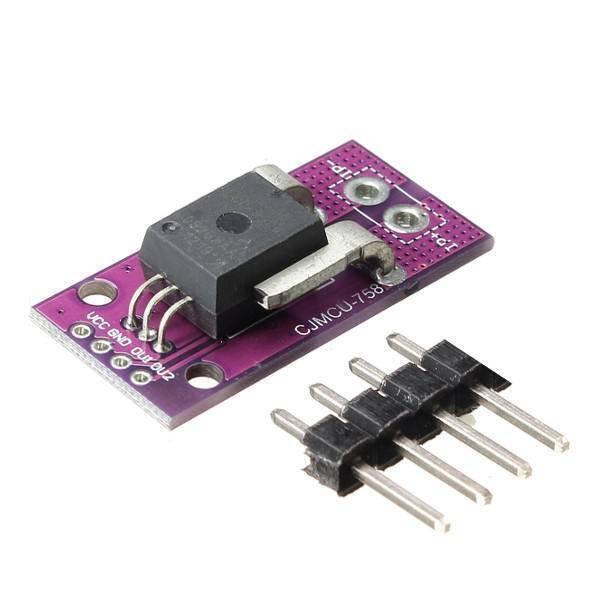

50A HW-525 ACS758 Hall Effect Current Sensor Module In Pakistan | microsolution.com.pk

ACS758LCB-050B Hall-Effect-Based Linear Current Sensor IC provides economical and precise solutions for AC or DC current sensing. Typical applications include motor control, load detection and management, power supply and DC-to-DC converter control, inverter control, and overcurrent fault detection.

Features and Benefits:

• Maximum current: 50A
• Voltage：3.3-5V
• temperature：-41°C ~ 152°C
• Industry-leading noise performance through proprietary amplifier and filter design techniques
• Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high voltage applications
• Total output error improvement through gain and offset trim over temperature
• Small package size, with easy mounting capability
• Monolithic Hall IC for high reliability
• Ultra-low-power loss: 100 μΩ internal conductor resistance
• Galvanic isolation allows use in economical, high-side current sensing in high voltage systems
• 3.0 to 5.5 V, single-supply operation
• 120 kHz typical bandwidth
• 3 μs output rise time in response to step input current
• Output voltage proportional to AC or DC currents
• Factory-trimmed for accuracy
• Extremely stable output offset voltage
• Nearly zero magnetic hysteresis

Package Included:

1 x ACS758 50amp Current Sensor for Arduino
