5v 8 Channel Relay Module Relay Board Relay Arduino Relay Module



Product Introduction

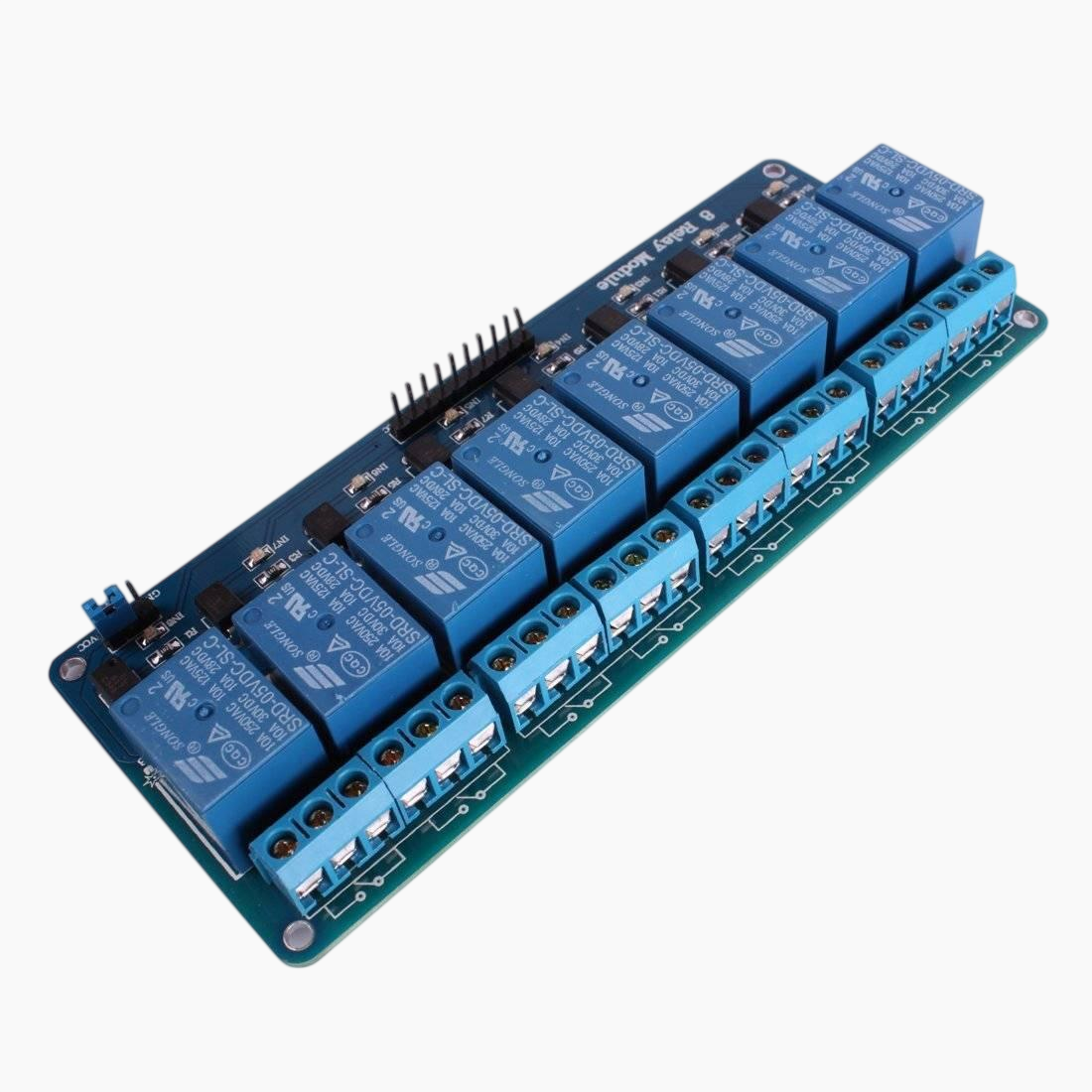

Do you need to control multiple high-power devices with your Arduino or Raspberry Pi? The 5v 8 Channel Relay Module | microsolution.com.pk provides the perfect solution for switching up to eight appliances simultaneously. This powerful module lets your low-voltage microcontroller safely control high-voltage equipment like lights, fans, motors, and industrial machinery.

The 5v 8 Channel Relay Module | microsolution.com.pk features eight independent relays, each capable of switching loads up to 250V AC at 10A or 30V DC at 10A . This high current capacity means you can control everything from household appliances to industrial equipment with confidence. Each relay operates independently, giving you precise control over multiple devices from a single board.

Pakistani engineers, students, and hobbyists trust the 5v 8 Channel Relay Module | microsolution.com.pk for their automation projects. Available at competitive prices across Pakistan, this module offers exceptional value for anyone building smart home systems, industrial controllers, or IoT applications . The module works perfectly with Arduino, ESP32, Raspberry Pi, PIC, AVR, and ARM microcontrollers .

What makes the 5v 8 Channel Relay Module | microsolution.com.pk stand out? It features optocoupler isolation on each channel, providing complete electrical separation between your control circuit and the high-voltage load . This isolation protects your valuable microcontroller from voltage spikes and electrical noise, ensuring reliable operation. The module also includes red LED indicators for each channel, showing relay status at a glance .

The 5v 8 Channel Relay Module | microsolution.com.pk supports both high-level and low-level trigger modes through jumper settings . This flexibility makes it compatible with various microcontroller logic levels, from 3.3V to 5V systems. The standard interface connects directly to microcontrollers without additional components .

Durability matters in the Pakistani market, and this module delivers. The high-quality double-sided PCB and reliable relays ensure long service life . The 5V operating voltage means you can power it directly from your Arduino or use an external power supply for demanding applications.

Join the thousands of Pakistani makers who rely on the 5v 8 Channel Relay Module | microsolution.com.pk for their projects. From university labs in Lahore to smart home installations in Karachi, this module powers automation innovation across Pakistan. Get yours today and start controlling the world around you.

---

2️⃣ Key Features

1. Controls up to eight independent devices simultaneously from one module .

2. Switches high-power loads with each relay handling 250V AC at 10A .

3. Protects your microcontroller with optocoupler isolation on every channel .

4. Works with 5V logic systems including Arduino, ESP32, and Raspberry Pi .

5. Shows relay status instantly with individual red LED indicators .

6. Connects directly to microcontrollers through the standard interface .

7. Supports both high and low-level trigger modes via jumper settings .

8. Includes screw terminal blocks for secure and easy wiring .

9. Features a compact PCB design with mounting holes for installation .

10. Provides both Normally Open and Normally Closed contacts on each relay .

11. Accepts 3.3V to 5V trigger signals for broad compatibility .

12. Saves space by integrating eight relays on a single board.

13. Handles DC loads up to 30V at 10A .

14. Includes a power indicator LED showing module status .

15. Features a double-sided PCB for improved durability .

16. Operates with minimal trigger current of 5mA per channel .

17. Enables simultaneous switching of multiple appliances.

18. Works with PLC systems for industrial control .

19. Provides reliable performance with triode drive circuitry .

20. Offers pull-down circuits that prevent false triggering .

---

3️⃣ Advanced Features

1. Integrates 8 independent SPDT relays for versatile switching configurations.

2. Features optocoupler isolation that creates complete electrical separation between control and load circuits .

3. Implements low-level trigger mode that activates relays with a ground signal.

4. Supports high-level trigger mode for positive logic microcontrollers .

5. Includes a JD-VCC jumper that enables external relay power supply for heavy loads .

6. Provides individual status LEDs that confirm each relay's activation state.

7. Features a robust screw terminal design that ensures secure load connections.

8. Enables appliance control through simple TTL logic signals.

9. Offers fast response time of under 10ms for real-time switching .

10. Supports continuous operation with high-current loads.

11. Includes power and control isolation trenches that meet safety standards .

12. Features a wide operating temperature range of -20°C to +70°C .

13. Provides common (COM), normally open (NO), and normally closed (NC) terminals on each channel.

14. Supports both AC and DC load switching applications.

15. Features high-amp relay contacts with silver material for reliable conductivity .

16. Implements LED indicators that simplify troubleshooting and debugging.

17. Offers flexible power options through VCC and JD-VCC pins .

18. Features a 5V control voltage that matches most development boards.

19. Provides stable operation with high-impedance controller pins .

20. Supports quick integration into existing automation systems.

---

4️⃣ Frequently Asked Questions

Q1: What is the 5V 8 Channel Relay Module used for?

Answer: The 5v 8 Channel Relay Module | microsolution.com.pk controls multiple high-voltage devices from a low-voltage microcontroller. Use it for home automation, industrial control, and robotics projects .

Q2: What is the maximum load per relay channel?

Answer: Each relay handles up to 250V AC at 10A or 30V DC at 10A. This capacity covers most household appliances and industrial equipment .

Q3: Does this module work with Arduino?

Answer: Yes, it connects directly to Arduino and other 5V microcontrollers. The standard interface makes wiring simple .

Q4: What is the purpose of optocoupler isolation?

Answer: Optocouplers provide electrical isolation between your control circuit and high-voltage loads. This protection prevents voltage spikes from damaging your microcontroller .

Q5: How do I connect the relay module to my microcontroller?

Answer: Connect VCC to 5V, GND to ground, and IN1 to IN8 to your microcontroller's digital pins. The module triggers on low signals by default .

Q6: Can this module work with 3.3V microcontrollers like ESP32?

Answer: Yes, the module accepts 3.3V to 5V trigger signals, making it compatible with ESP32 and other 3.3V logic boards .

Q7: What do the red LEDs indicate?

Answer: Each red LED shows when its corresponding relay is active. This visual feedback helps you monitor switching status .

Q8: Do I need an external power supply?

Answer: You can power the module from your microcontroller's 5V pin for most applications. For heavy loads, use an external supply through JD-VCC .

Q9: Where can I buy this relay module in Pakistan?

Answer: You can purchase the 5v 8 Channel Relay Module | microsolution.com.pk online with delivery across Pakistan .

Q10: How many channels does this module have?

Answer: The module features 8 independent relay channels, allowing you to control up to eight separate devices .

---

5️⃣ Where It Can Be Used

1. Home Automation Systems – Control lights, fans, and appliances remotely through your Arduino.

2. Industrial Control Panels – Switch motors, pumps, and machinery in manufacturing environments .

3. IoT Projects – Create internet-connected devices that control physical equipment.

4. Robotics Applications – Activate actuators, solenoids, and drive systems .

5. Smart Home Installations – Build integrated home control systems with multiple zones.

6. University Labs – Students learn about relay control and automation concepts.

7. Security Systems – Control locks, cameras, and alarm equipment.

8. PLC Control Systems – Interface with programmable logic controllers for industrial use .

9. Power Management – Switch power to different equipment sequentially.

10. Prototyping Workshops – Test and develop automation ideas quickly.

---

6️⃣ How to Use

Setting up your 5v 8 Channel Relay Module | microsolution.com.pk takes just minutes. Follow these simple steps and start controlling your devices.

Step 1: Understand the Pins
The module has three input pins: VCC (5V power), GND (ground), and eight signal pins (IN1-IN8). On the output side, each relay has three terminals: COM (common), NO (normally open), and NC (normally closed) .

Step 2: Connect Power
Connect VCC to your Arduino's 5V pin and GND to ground. The module draws about 100mA when all relays are active . For heavy loads, connect an external power supply to JD-VCC .

Step 3: Wire Your Microcontroller
Connect IN1 to IN8 to your Arduino's digital pins. The module triggers on a LOW signal by default . When you set a pin to LOW, the corresponding relay activates.

Step 4: Connect Your Loads
Wire your devices to the relay outputs. Connect the live wire to COM and your load to NO. When the relay activates, the circuit completes and your device turns on .

Step 5: Write Your Code
Upload a simple sketch to test the relays. Use digitalWrite(pin, LOW) to activate and digitalWrite(pin, HIGH) to deactivate each relay.

Safety Tips:

• Never connect high-voltage wires while the module is powered

• Use appropriate wire gauges for your load current

• Keep the module away from flammable materials

• Use an external fuse for protection

• Double-check all connections before applying power

• Use the optocoupler isolation features properly

Maintenance Guidance:
Keep the module clean and free from dust. Periodically check screw terminals for tightness. Store in a dry location when not in use. The high-quality construction ensures years of reliable operation with proper care.

---

7️⃣ Advantages

1. Eight Channels – Control multiple devices from a single module for efficient automation .

2. High Current Capacity – Each relay handles 10A at 250V AC, covering most applications .

3. Optocoupler Isolation – Protects your microcontroller from voltage spikes and noise .

4. Broad Compatibility – Works with Arduino, ESP32, Raspberry Pi, and other 5V/3.3V logic boards .

5. Visual Status Indicators – LED shows relay status for easy monitoring .

6. Easy Wiring – Screw terminals and clear labeling simplify setup .

7. Flexible Trigger Modes – Supports both high and low-level triggering .

8. Durable Construction – High-quality PCB and relays ensure long service life .

9. Cost-Effective – Affordable price makes automation accessible to everyone .

10. Versatile Applications – Suitable for home, industrial, and educational use.

---

8️⃣ Disadvantages

1. Current Limitation – 10A per channel may not handle very heavy industrial loads.

2. Mechanical Wear – Moving parts have a limited lifespan under frequent switching.

3. Noise Generation – Relays produce audible clicking during operation.

4. Heat Dissipation – Module can get warm when switching high currents.

5. DC Load Limits – Only 30V DC capacity, limiting DC applications .

6. Bulkier Size – Larger than solid-state relay alternatives.

7. Inductive Load Issues – Requires snubber circuits for motors and transformers.

8. Response Speed – Mechanical relays have millisecond response times.

9. Power Consumption – Each coil draws current when activated .

10. Potential Sticking – Contacts may stick under short-circuit conditions.

---

9️⃣ City-Wise Sales Coverage in Punjab

The 5v 8 Channel Relay Module | microsolution.com.pk is available across all major cities in Punjab. Customers in Lahore and Faisalabad can access this essential automation component quickly and affordably. Our network serves the growing maker and industrial communities in Rawalpindi, Multan, and Gujranwala, ensuring fast delivery and competitive pricing. Customers in Sialkot, Bahawalpur, and Sargodha receive the same premium service and support. We also cover Rahim Yar Khan, Sheikhupura, Jhang, and Dera Ghazi Khan with reliable stock. Our distribution reaches Gujrat, Okara, Kasur, Sahiwal, Khanewal, Chiniot, Pakpattan, and Vehari. Wherever you are in Punjab, you can get your 8-channel relay module quickly and start automating your projects without delay.

---
