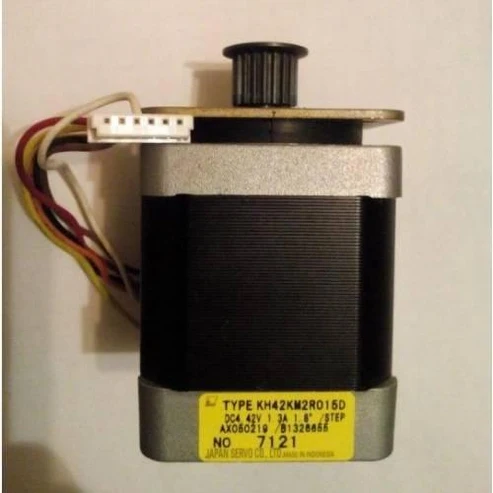

A4988 DRV8825 Compatible NEMA 17 Stepper Motor With GT2 Compatible Pulley
₨ 2,000
[yith_wcwl_add_to_wishlist]
Need some help?
Contact Us
Product Ships in
2-3-business Days
Payment Methods:
A4988 DRV8825 Compatible NEMA 17 Stepper Motor With GT2 Compatible Pulley | microsolution.com.pk
NEMA17 4 Wire Bipolar Stepper Motor NEMA17 Stepper Motor NEMA 17 Stepper Motor very useful in the various application especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc. Nema17 4 wire Bipolar Stepper Motor is High precision 6-wire bipolar stepper motor, size in Nema 17, 1.8 deg. step angle (200 … It is one of most parameters for the stepper motor). The motor was specified to have a max current of 1A so that it could be driven easily with an A4988 or drv8825 and a wall adapter.
Key Specifications
- Step Angle: 1.8° (200 steps per revolution)
- Phase Current: ~1.2A to 1.3A (ideal for A4988/DRV8825 limits)
- Pulley Type: GT2 aluminum pulley (2mm pitch, 6mm belt width compatible)
- Dimensions: Standard NEMA 17 frame (approx. 42 x 42 mm face)
Driver Comparison
- A4988 Driver: Supports up to 1/16 microstepping; handles ~1A continuous current safely with a heat sink.
- DRV8825 Driver: Supports finer 1/32 microstepping and handles higher current/voltage margins (up to 45V)
Package Includes:
- 1x stepper motor
- 1x compatible wire
