Product Introduction

Do you want your Arduino to communicate with USB devices like keyboards, mice, or game controllers? Then you need the Arduino Compatible USB Host Shield in Pakistan - microsolution.com.pk. This powerful expansion board transforms your Arduino from a simple USB peripheral into a capable USB host controller .

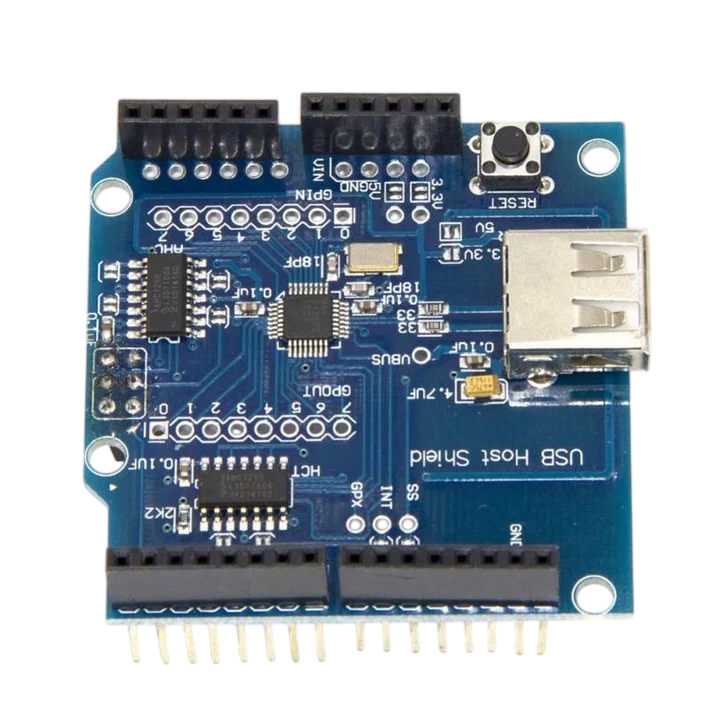

The Arduino Compatible USB Host Shield in Pakistan - microsolution.com.pk enables your Arduino board to interface with a vast range of USB devices. You can plug in a USB keyboard for user input, a mouse for navigation, a game controller for robotics control, or even a USB flash drive for data logging . This shield truly expands your Arduino's potential.

We understand that Pakistani students, professionals, and businesses demand high-quality, reliable components. The Arduino Compatible USB Host Shield in Pakistan - microsolution.com.pk delivers robust performance through the MAX3421E USB host controller chip . This chip handles the complex USB protocol, allowing your Arduino to communicate effortlessly with USB devices at full speed .

This shield is not only powerful but also versatile. The Arduino Compatible USB Host Shield in Pakistan - microsolution.com.pk works seamlessly with Arduino Uno, Mega 2560, and other compatible boards . Its plug-and-play design, with stackable connectors, makes setup simple . Whether you're building an interactive project, a data logging system, or a complex robotics application, this shield offers a cost-effective solution.

Don't let limited connectivity hold you back. Enhance your projects with the Arduino Compatible USB Host Shield in Pakistan - microsolution.com.pk. This shield empowers you to connect to standard USB peripherals, from keyboards and mice to mass storage devices . It opens up a world of possibilities for creating user-friendly and data-rich systems.

The Arduino Compatible USB Host Shield in Pakistan - microsolution.com.pk is available now. It's the essential tool for any serious Arduino developer in Pakistan. Whether you're a student in Lahore, a professional in Karachi, or a hobbyist in Islamabad, this shield is your gateway to advanced USB integration. Order the Arduino Compatible USB Host Shield in Pakistan - microsolution.com.pk today and start building smarter projects.

2️⃣ Key Features

• Transform Your Arduino: Act as a USB host and communicate directly with USB devices .

• Connect Standard Peripherals: Interface with USB keyboards, mice, and joysticks effortlessly .

• Log Data to Flash Drives: Read and write data to USB memory sticks and external hard drives .

• Control with Game Controllers: Use PS3, Wii, or Xbox 360 controllers for robotics projects .

• Work with Serial Devices: Connect USB-to-serial converters, GPS receivers, and mobile phones .

• Integrate with Android: Enable communication with ADK-capable Android phones and tablets .

• Interface with Cameras: Control Canon and Nikon digital cameras via USB .

• Add Bluetooth Wirelessly: Connect a Bluetooth dongle for wireless project capabilities .

• Enjoy Wide Compatibility: Works with Arduino Uno, Mega 2560, Leonardo, and more .

• Communicate via SPI: Use standard SPI pins (11, 12, 13) for reliable data transfer .

• Power Devices Directly: Provide up to 500mA to connected USB devices .

• Use Standard Libraries: Utilize the mature USB Host Shield Library 2.0 .

• Support Multiple HIDs: Connect multiple keyboards or mice via a USB hub .

• Get Stackable Design: Stack other shields on top for expanded functionality .

• Plug and Play: Solder the included headers and start using it immediately .

• Operate in Harsh Conditions: Function reliably from -40°C to +85°C .

• Use Boot Protocol: Simplify HID device support with standardized boot protocol .

• Access Extensive Examples: Use provided library examples for quick project starts .

• Add USB Hub Support: Connect a USB hub to interface with multiple devices .

• Get Affordable Power: Access premium USB host features at a budget-friendly price in Pakistan.

3️⃣ Advanced Features

• MAX3421E Host Controller: Implement full-speed USB host with the dedicated controller chip .

• USB Specification 2.0 Compliance: Support full-speed (12Mbps) and low-speed (1.5Mbps) devices .

• SPI Communication Interface: Achieve high-speed serial communication between Arduino and the chip .

• Software Reconfigurable Pins: Modify SS and INT pins via jumpers for flexible hardware design .

• MIDI Device Support: Convert a USB MIDI keyboard to a legacy serial MIDI interface .

• Multiple Device Classes: Support HID, mass storage, ADK, and custom USB applications .

• HID Universal Library: Use a core library that handles initialization for various device parsers .

• Nintendo Switch Pro Support: Connect and control a Switch Pro controller via USB .

• PlayStation Buzz Support: Integrate PlayStation Buzz controllers for interactive projects .

• amBX Light Control: Manage Philips amBX lighting systems programmatically .

• USB Hub Implementation: Use the usbhub.h library and USBHub class for hub management .

• Powered Hub Compatibility: Connect a powered USB hub to overcome power limitations .

• External Power Supply Ready: Accept power from an external adapter for high-current devices .

• ICSP Header Routing: Use the ICSP header for SPI connections, freeing other pins .

• Real-Time HID Parsing: Parse keyboard and mouse data with efficient OnKeyDown/Up callbacks .

• Report Protocol Support: Access advanced device features via report protocol customization .

• Auto-Resume Functionality: Support the USB auto-resume feature for power-efficient designs.

• Interrupt-Driven Communication: Use an interrupt pin (INT) to notify the Arduino of USB events .

• Prototyping Through-Hole Pads: Include onboard pads for custom circuitry .

• Stackable Shield Design: Maintain compatibility with other shields through pass-through pins.

4️⃣ Frequently Asked Questions (FAQs)

Q1: What is the Arduino Compatible USB Host Shield?
Answer: It is an expansion board that adds USB host capabilities to your Arduino, allowing it to control USB devices like keyboards, mice, and flash drives .

Q2: Is this shield compatible with the Arduino Mega 2560?
Answer: Yes, the shield is fully compatible with the Arduino Mega 2560, as well as Uno, Leonardo, and other boards .

Q3: Which USB devices does this shield support?
Answer: It supports HID devices (keyboards, mice), mass storage (flash drives), game controllers (PS3, Wii), Android ADK, digital cameras, and more .

Q4: How does the shield communicate with Arduino?
Answer: The shield communicates using the SPI interface through pins 11, 12, and 13 on the Arduino Uno and the ICSP header on the Mega .

Q5: Does this shield require an external power supply?
Answer: For most USB devices, powering the Arduino via the barrel jack is recommended. High-power devices may need an external power supply or powered USB hub .

Q6: Where can I buy this shield in Pakistan?
Answer: You can order the Arduino Compatible USB Host Shield in Pakistan from microsolution.com.pk with fast delivery across the country .

Q7: Can I connect multiple devices to one shield?
Answer: Yes, you can connect a USB hub to the shield and then connect multiple USB devices, depending on power availability .

Q8: Can I use wireless keyboards with this shield?
Answer: Yes, wireless keyboards with USB dongles work with the shield. However, they may require more power, so an external supply is often needed .

Q9: What library do I need to use this shield?
Answer: You need to install the USB Host Shield Library 2.0 via the Arduino Library Manager .

Q10: Can I use this shield to control a digital camera?
Answer: Yes, the shield supports interfacing with digital cameras like Canon EOS and Nikon DSLRs, enabling camera control for time-lapse or robotics .

5️⃣ Where It Can Be Used

1. Robotics Control: Use USB game controllers to remotely pilot robots .

2. Data Logging Systems: Save sensor data directly to a USB flash drive .

3. Human-Machine Interfaces: Connect standard keyboards and mice to your Arduino projects .

4. Automated Testing: Automate device testing by simulating keyboard and mouse input .

5. Industrial Control Panels: Create industrial interfaces using USB peripherals for input.

6. Interactive Installations: Build interactive art or museum displays using USB input devices.

7. Android Accessory Development: Develop ADK-compatible accessories for Android phones .

8. Camera Control Systems: Build time-lapse photography or machine vision projects with digital cameras .

9. Security Access Systems: Create password-protected systems using USB keyboards for input.

10. Educational Projects: Teach students about USB communication and embedded systems in Pakistan's universities .

6️⃣ How to Use

Getting started with the USB Host Shield is straightforward. First, you need to solder the included stackable headers to the shield . Make sure the 2x3 ICSP connector's female side faces down when you connect it to your Arduino .

Once soldered, plug the shield onto your Arduino board. Connect a USB device, such as a keyboard, to the shield's USB Type-A port . Next, install the USB Host Shield Library 2.0 via the Arduino Library Manager in your Arduino IDE .

After installation, open a library example like "USB_Desc" from the File > Examples menu. Connect your Arduino to your computer via USB and upload the code . Open the Serial Monitor to see the USB device description output .

For safety, ensure you power your Arduino adequately when using power-hungry USB devices . Use an external power supply (7-9V DC, 1A) via the barrel jack, not just USB power from your computer . If a device isn't recognized, try a powered USB hub between the shield and the device .

There is no special maintenance required, but handle the shield carefully as with any electronic component. Avoid static discharge and keep the board clean and dry.

7️⃣ Advantages

• USB Host Power: Enables Arduino to act as a host, not just a peripheral .

• Cost-Effective Solution: Adds USB host functionality at a fraction of the cost of dedicated hardware .

• Wide Device Support: Interacts with dozens of USB device classes from HIDs to mass storage .

• Mature Library Support: Benefits from a well-developed, community-maintained library .

• Easy Integration: Plugs directly onto Arduino boards with stackable connectors .

• Versatile Applications: Ideal for robotics, automation, data logging, and interactive systems .

• Robust Hardware: Built with the reliable MAX3421E chip and high-quality components .

• Plug-and-Play Setup: Requires minimal configuration to start using USB devices .

• Supports USB Hubs: Allows connecting multiple USB devices through a hub .

• Available in Pakistan: Readily available from microsolution.com.pk with fast delivery .

8️⃣ Disadvantages

• Power Constraints: May require an external power supply for high-current USB devices .

• SPI Pin Usage: Uses the hardware SPI pins, which you cannot use for other purposes .

• Library Complexity: The advanced library may have a learning curve for beginners .

• Incompatibility with Some Wireless Devices: Some low-quality wireless dongles may not enumerate correctly .

• Shield Size: Adds height to your Arduino, which may not fit in all enclosures.

• Extra Cost: Adds cost to your project compared to using only the Arduino board.

• Requires Solder: The headers require soldering, which may be a barrier for total beginners .

• Limited to USB 2.0: Does not support USB 3.0 or USB-C natively without adapters .

• Potential Address Conflicts: May have SPI address conflicts with other SPI shields.

• Not All Devices Supported: Not every USB device is compatible; testing is advised.

9️⃣ City-Wise Sales Coverage in Punjab

We deliver the Arduino Compatible USB Host Shield across all of Punjab, ensuring students, professionals, and businesses have access to this essential expansion module. Our complete coverage includes major cities like Lahore, Faisalabad, Rawalpindi, Multan, and Gujranwala. We also serve Sialkot, Bahawalpur, Sargodha, Rahim Yar Khan, Sheikhupura, Jhang, Dera Ghazi Khan, Gujrat, Okara, Kasur, Sahiwal, Khanewal, Chiniot, Pakpattan, and Vehari. No matter where you are in the province, your next USB-integrated project is just an order away.
