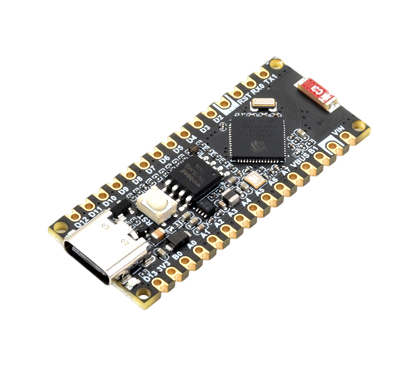

ESP32-S3-nano Development Board, Based On ESP32-S3R8, Compatible With Arduino Nano ESP32 | In Pakistan
ESP32-S3-Nano is a compact development board built around the dual-core ESP32-S3R8 chip. Designed to match the classic Arduino Nano footprint, it packs 240 MHz processing, 8MB PSRAM, 16MB Flash, 2.4GHz Wi-Fi, and Bluetooth LE, offering a powerful alternative for Arduino and MicroPython IoT projects.
Technical Specifications
- Microcontroller: ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor (up to 240 MHz)
- Memory: 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash memory
- Wireless: 2.4GHz Wi-Fi and Bluetooth Low Energy (BLE) dual-mode
- Operating Voltage: 3.3V logic (supports 6V to 21V via VIN pin/raw power)
- Pins: 14 digital I/O pins, 8 analog pins
Key Features
- Form Factor Compatibility: Pin-compatible with the Arduino Nano layout, allowing it to fit into standard breakout shields and breadboards.
- USB-HID Support: Can emulate human interface devices like computer keyboards and mice natively over its USB connection.
- Cloud & Coding Flexibility: Fully compatible with Arduino IoT Cloud and built to seamlessly switch between the Arduino IDE and MicroPython.
