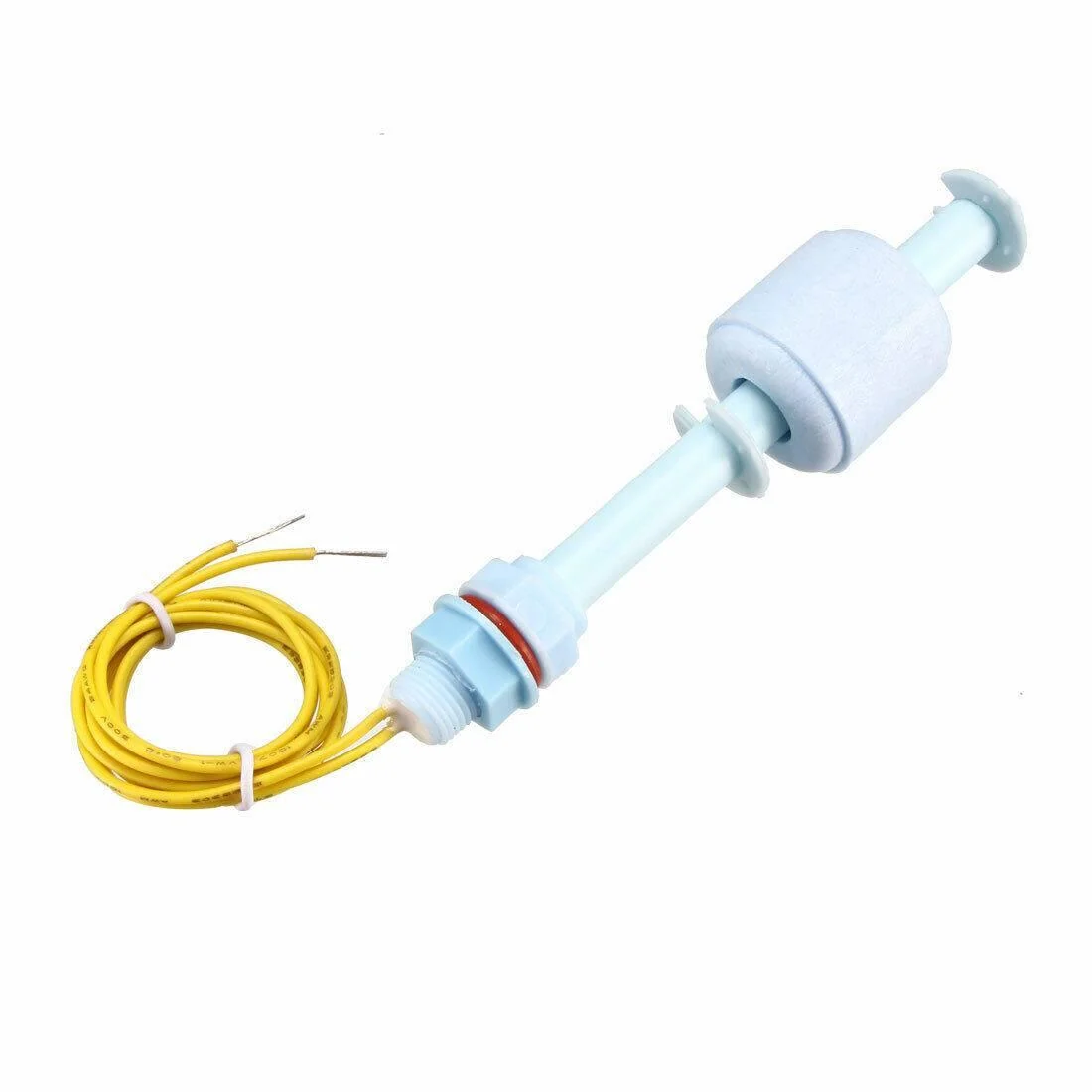

Float Switch Level Switch Liquid Level Sensor P110 In Pakistan | microsolution.com.pk



Level float switch is mainly composed of magnetic reed switch and float composed of magnetic material inside the float , the float moves up and down with the measured liquid level , touch the reed switch detection level position . Liquid level sensor using imported switching elements , with lightweight , the working principle is simple, reliable , inexpensive features , with different materials and specifications of the float to choose , electrical parameters can be changed according to customer requirements, special specifications can also be customized . products can be used for drinking , water heaters in automotive, industrial equipment, agricultural equipment , household appliances broad application prospects , solar, air conditioners, humidifiers , bathroom equipment, vending machines, tanks , towers, chemical liquid level control.

Specifications & Features

  • Maximum Switching Voltage: DC 100V
  • Maximum Switching Current: 0.5A
  • Operating Temperature: -30°C to 140°C
  • Wire Length: 300mm
  • Material: Polypropylene (PP) plastic for high chemical resistance

Working Principle

The float contains a permanent magnet that moves up and down along a central shaft as the liquid level changes. When the float reaches a specific point, the internal magnetic reed switch opens or closes to complete or break the low-power electrical circuit. Because of its low current and voltage rating, it is typically paired with a relay or microcontroller (like an Arduino) rather than connected directly to high-load AC mains equipment.
