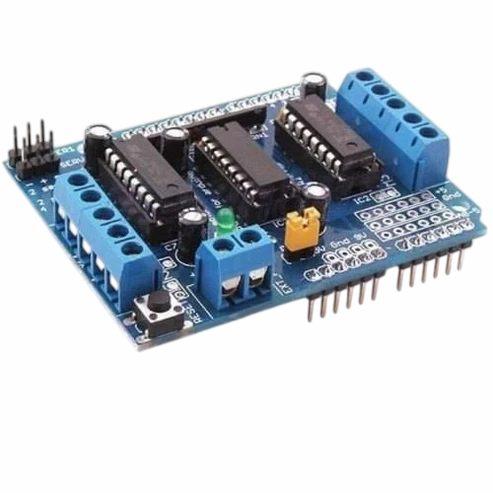

L293D based DC Motor/Stepper/Servo Shield buy in pakistan



Are you struggling to control DC motors with your Arduino projects? Does your robot need to move forward, backward, and turn with precision? The L293 L293D Motor Driver Module for Arduino in Pakistan provides the perfect solution to all your motor control challenges. This powerful and versatile module acts as an essential bridge between your Arduino and the motors that bring your projects to life.

The L293 L293D Motor Driver Module for Arduino in Pakistan serves as a critical component for students, hobbyists, and professionals across the country. Whether you are building a line-following robot, a robotic arm, or an automated conveyor system, this module gives you the power to control motor direction and speed effortlessly. Pakistani makers and engineers now access this essential component easily, empowering them to create more ambitious robotics and automation projects .

This dual H-bridge driver module communicates directly with your Arduino and controls up to two DC motors or one stepper motor simultaneously. The L293 L293D Motor Driver Module for Arduino in Pakistan simplifies your wiring and coding, saving you valuable development time and reducing the complexity of your circuits . With its straightforward pin configuration, you can have your motors running within minutes.

Quality matters when choosing electronic components, and this module delivers exceptional performance. The onboard L293D IC provides 600mA continuous current per channel with 1.2A peak current capability. The built-in clamp diodes protect your Arduino from voltage spikes generated by inductive loads . When you purchase the L293 L293D Motor Driver Module for Arduino in Pakistan, you get a robust, well-designed board that works reliably in demanding conditions.

Affordability makes this module accessible to everyone. Students across Pakistani universities use it for their robotics competitions, while professionals employ it in industrial prototypes. The L293 L293D Motor Driver Module for Arduino in Pakistan offers exceptional value, providing professional-grade motor control capabilities at a fraction of the cost of other solutions.

Durability sets this module apart from cheaper alternatives. The sturdy PCB construction, gold-plated pins, and thermal shutdown protection ensure years of reliable operation . When you invest in the L293 L293D Motor Driver Module for Arduino in Pakistan, you choose a component built to last through countless project iterations and demanding conditions.

The L293 L293D Motor Driver Module for Arduino in Pakistan truly revolutionizes what you can achieve with your microcontroller projects. With this essential component, you move beyond simple LED blinking and sensor reading to create dynamic, motion-based systems that interact with the physical world.

The L293 L293D Motor Driver Module for Arduino in Pakistan represents a wise investment for anyone serious about robotics, automation, and electronics. We encourage you to acquire this essential module and elevate your projects to the next level.

Key Features

1. Controls Two DC Motors – Drives two bidirectional DC motors simultaneously for mobile robot applications .

2. Supports Stepper Motors – Controls one bipolar stepper motor with precise step sequencing.

3. Delivers 600mA Continuous Current – Provides ample power for most hobby motors and small robotics projects .

4. Offers 1.2A Peak Current – Handles motor startup surges and temporary overload conditions safely .

5. Includes Built-in Clamp Diodes – Protects your Arduino from voltage spikes generated by inductive loads .

6. Operates at 4.5V to 36V – Works with a wide range of motor power supplies for flexible applications .

7. Features Enable Inputs – Allows you to enable or disable motor channels individually .

8. Provides Thermal Shutdown Protection – Prevents IC damage from overheating during heavy use .

9. Simple Logic Interface – Connects directly to Arduino digital pins for straightforward control.

10. Supports PWM Speed Control – Enables variable motor speed using pulse width modulation .

11. Includes High-Noise Immunity Inputs – Ensures reliable operation in electrically noisy environments .

12. Works with 5V Logic Systems – Compatible with Arduino, Raspberry Pi, and other 5V microcontrollers.

13. Provides Separate Logic Supply – Operates logic and motor power supplies independently for stability .

14. Offers TTL and DTL Compatibility – Works with standard logic levels from various microcontrollers .

15. Features Compact Design – Fits easily into tight spaces and small robot chassis .

16. Includes Screw Terminal Blocks – Allows secure and convenient motor wire connections .

17. Supports 0°C to 70°C Operation – Performs reliably in typical indoor environments .

18. Enables Bidirectional Current Flow – Controls motor direction seamlessly with simple logic signals.

19. Provides 5kHz Switching Frequency – Handles smooth PWM control for accurate speed regulation .

20. Includes Pull-Down Resistors – Keeps motors disabled during power-up to prevent unexpected movement .

Advanced Features

1. Integrates Dual H-Bridge Design – Contains two complete H-bridges for independent motor control .

2. Features 74HC595 Shift Register – Reduces Arduino pin usage by converting serial data to parallel outputs .

3. Supports Four DC Motors – Controls up to four motors with shield version using two L293D ICs .

4. Provides Dedicated Servo Headers – Includes connectors for two servo motors with PWM control .

5. Enables Multi-Motor Coordination – Synchronizes motors for complex robotic movements .

6. Features Advanced Speed Regulation – Achieves 0.5% resolution speed control with 8-bit PWM .

7. Includes External Power Input – Powers motors separately from Arduino for better stability .

8. Supports Stepper Motor Modes – Offers single coil, double coil, and interleaved stepping sequences .

9. Provides Flexible Power Configuration – Uses single supply or separate supplies for logic and motors .

10. Features Big Terminal Block Connectors – Accommodates 18-26AWG wires for robust connections .

11. Includes Reset Button Access – Places Arduino reset button conveniently on top of the shield .

12. Offers Analog Pin Breakout – Provides access to A0-A5 pins for sensor connections .

13. Supports 4.5V to 25V Motors – Drives a wide range of DC motors with different voltage ratings .

14. Features 8-Bit Speed Selection – Provides 256 speed levels for precise motor control .

15. Enables Direction and Speed Control – Manages both rotation direction and speed independently.

16. Includes Thermal Shutdown Circuit – Automatically protects IC from overtemperature conditions.

17. Supports 5kHz PWM Frequency – Enables smooth and efficient motor speed regulation .

18. Features ESD Protection – Protects the IC from electrostatic discharge damage .

19. Provides Internal Logic-Level Translation – Accepts standard TTL and DTL logic levels directly .

20. Enables Easy Library Integration – Works with popular Arduino motor control libraries for rapid development .

Frequently Asked Questions

Q1: What is an L293 L293D Motor Driver Module for Arduino in Pakistan?
Answer: The L293 L293D Motor Driver Module for Arduino in Pakistan is a dual H-bridge motor driver board that enables your Arduino to control the direction and speed of DC motors, stepper motors, and other inductive loads .

Q2: How many motors can I control with this module?
Answer: The standard L293D module controls up to two DC motors or one stepper motor. The shield version controls up to four DC motors, two stepper motors, and two servos .

Q3: What is the difference between L293 and L293D?
Answer: The L293 delivers 1A continuous current per channel while the L293D delivers 600mA. The L293D includes built-in clamp diodes for inductive transient suppression, which the L293 lacks .

Q4: What is the price of the L293 L293D Motor Driver Module in Pakistan?
Answer: The L293 L293D Motor Driver Module in Pakistan is affordably priced, typically ranging from PKR 230 to PKR 400 depending on the version and retailer .

Q5: How do I connect this motor driver to my Arduino?
Answer: Connect the module's input pins to Arduino digital pins, VCC to 5V, GND to ground, and motor power to the external supply terminal. Enable pins typically connect to 5V for continuous operation .

Q6: Can I use this driver with 12V motors?
Answer: Yes, the L293D operates with motor supply voltages from 4.5V to 36V, making it compatible with 12V motors. Ensure your external power supply provides adequate current .

Q7: Does this module include protection diodes?
Answer: Yes, the L293D includes internal clamp diodes that protect your circuit from voltage spikes generated by inductive loads like motors .

Q8: Can I use this module with ESP32 or Raspberry Pi?
Answer: Yes, the L293 L293D Motor Driver Module for Arduino in Pakistan works with 3.3V and 5V logic systems, making it compatible with ESP32, Raspberry Pi, and other microcontrollers .

Q9: Do I need an external power supply for the motors?
Answer: For best performance and stability, we strongly recommend using an external power supply for the motors. This prevents current draw from affecting your Arduino's operation .

Q10: What type of motors can I control with this driver?
Answer: The module controls brushed DC motors, bipolar stepper motors, and other inductive loads like relays and solenoids .

Where It Can Be Used

1. Robotics Projects – Students and hobbyists use the module to build wheeled robots and robotic arms.

2. Automated Conveyor Systems – Industries implement the module for controlling conveyor belts and material handling equipment.

3. Smart Home Automation – Home users integrate the driver for motorized blinds, curtain openers, and garage door controls.

4. Educational Demonstrations – Teachers use the module to explain motor control principles in engineering classes.

5. CNC and 3D Printer Projects – Makers build custom CNC routers and 3D printers using stepper motor control.

6. Battery-Powered Vehicles – Engineers develop RC cars, boats, and drones with precision motor control.

7. Agricultural Automation – Farmers implement motor control for automated irrigation valves and feeding systems.

8. Medical Equipment – Professionals develop motorized medical devices and laboratory automation.

9. Industrial Prototyping – Engineers create proof-of-concept designs for manufacturing applications.

10. Competition Robots – Students use the module in robotics competitions for reliable motor control.

How to Use

Start by gathering all necessary components: the L293 L293D Motor Driver Module for Arduino in Pakistan, your Arduino board, DC motors, jumper wires, and an external power supply for the motors . Never power motors directly from the Arduino board as they draw more current than the board can safely provide.

Connect the motor driver module to your Arduino following this wiring scheme: Connect VCC to the Arduino's 5V pin to power the logic side of the IC. Attach GND to the Arduino ground pin. Connect the enable pins (EN1 and EN2) to 5V for continuous operation or to PWM-capable pins for speed control. Connect inputs IN1 and IN2 to Arduino digital pins for motor 1, and IN3 and IN4 for motor 2 .

Connect your motors to the output terminals: OUT1 and OUT2 for motor 1, OUT3 and OUT4 for motor 2. Connect the motor power supply positive and negative to the module's power input terminals, ensuring the voltage stays between 4.5V and 36V .

Program your Arduino to control the motors. Use this simple code structure: Set input pins as outputs. To drive motor forward, set IN1 HIGH and IN2 LOW. For reverse, set IN1 LOW and IN2 HIGH. For speed control, use PWM with analogWrite() on the enable pin .

For safety, always connect the external motor power before turning on your Arduino. Double-check all connections to prevent short circuits. Ensure your motors do not exceed the 600mA continuous or 1.2A peak current limits . Test the setup with a low voltage first to verify proper operation.

Maintain your L293 L293D Motor Driver Module for Arduino in Pakistan by keeping it clean and dust-free. Inspect connections periodically for loose wires or corrosion. Replace the module if you notice physical damage or reduced performance.

Advantages

1. Reliable Motor Control – Provides consistent and dependable motor operation for your projects .

2. Built-in Protection Features – Includes clamp diodes and thermal shutdown for circuit safety .

3. Wide Voltage Compatibility – Works with motors from 4.5V to 36V for flexible use .

4. Cost-Effective Solution – Offers professional motor control at an affordable price .

5. Easy to Use – Simple wiring and clear pin labeling make setup straightforward .

6. Versatile Application – Controls DC motors, stepper motors, and other inductive loads .

7. Compact Design – Fits easily into small robot chassis and tight spaces .

8. Scalable Functionality – Supports up to four motors with shield configuration .

9. Community Support – Benefits from extensive online tutorials and library support .

10. Proven Technology – Uses the industry-standard L293D IC with decades of reliable use.

Disadvantages

1. Current Limitations – Provides only 600mA continuous current, limiting large motor use .

2. Heat Generation – Produces significant heat when driving motors at high currents.

3. No Overcurrent Protection – Lacks current limiting, potentially damaging the IC with stall currents.

4. Requires External Power – Needs separate motor power supply for most applications .

5. Inefficient for Low Voltage – Voltage drop across driver reduces effective motor voltage.

6. No H-Bridge Configurability – Fixed bridge design limits customization options.

7. Stepper Motor Limitations – Supports only bipolar steppers, not all stepper types.

8. Analog Pin Usage – Shield version consumes many Arduino pins .

9. Not Suitable for High-Power Applications – Inadequate for industrial or high-torque motors.

10. Heat Sink Required – Needs additional cooling for sustained high-current operation.

City-Wise Sales Coverage in Punjab

We proudly serve electronics enthusiasts across Punjab with our L293 L293D Motor Driver Module for Arduino in Pakistan. Our extensive distribution network ensures fast delivery to major cities including Lahore, Faisalabad, Rawalpindi, Multan, Gujranwala, Sialkot, Bahawalpur, Sargodha, Rahim Yar Khan, Sheikhupura, Jhang, Dera Ghazi Khan, Gujrat, Okara, Kasur, Sahiwal, Khanewal, Chiniot, Pakpattan, and Vehari. Order now for quick shipping and reliable delivery across the province.

---

Buy L293D Motor Driver Module for Arduino in Pakistan Purchase the L293 L293D Motor Driver Module for Arduino in Pakistan for robotics and automation projects. Control DC motors and steppers. Shop now for fast delivery. L293D motor driver module for Arduino in Pakistan, L293D motor driver shield, Arduino motor driver Pakistan, L293D IC Pakistan, DC motor driver Arduino, stepper motor driver Arduino, motor control module Pakistan, robotics motor driver, buy L293D Pakistan, Arduino shield Pakistan, motor driver board Pakistan, L293D module price Pakistan, robot motor controller, Arduino robotics kit, motor driver IC Pakistan
