Sensor Shield V5 Expansion Board For Arduino | microsolution.com.pk
₨ 600
[yith_wcwl_add_to_wishlist]
Need some help?
Contact Us
Product Ships in
2-3-business Days
Payment Methods:
Sensor Shield V5 Expansion Board For Arduino | microsolution.com.pk In Pakistan

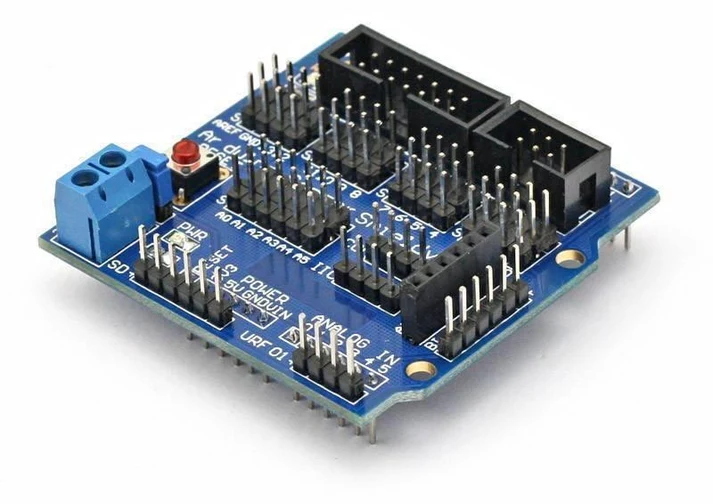

The latest Arduino Controller Sensor Shield V5.0 is producted by ALSRobot. This Sensor Shield expansion board to retains the advantages of version V4.0 on the basis of stack design, PCB Immersion Gold processing technology.newly added many kind of interface,for example,IIC interface、32 channels servo motor interface、bluetooth communication module interface、SD Card communication module interface and so on,more convenient.
Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometersEach functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.
You can easily connect with usual analog sensors by using this expansion board, such as ray sensor.if you support by this expansion board and corresponding circuit module,you only need to combine arduino and sensors module by using special cables, because concrete circuit details achieve by corresponding sensors module, so you only need to consider that how to read data coming from the sensor by program in arduino.
For Arduino beginners, you do not have a headache for the cumbersome and complex circuit connection, the sensor extends the true sense of the board to simplify the circuit which can easily connect the commonly used sensor, a sensor requires only a common 3P sensor cable (regardless of digital cable and analog cable), after the completion of the circuit connection, the preparation of the corresponding Arduino program downloaded to the Arduino Duemilanove controller reads the sensor data, or receive wireless module to return data after computing the final easy to complete your own interactive works.
Key Features and Specifications
- Pin Layout: Breaks out 14 digital I/O pins and 6 analog I/O pins into standard 3-pin headers (Signal, VCC, GND).
- Dedicated Interfaces: Includes onboard headers for I²C, SPI, UART/Serial, Bluetooth modules, SD card modules, APC220 radio frequency modules, and ultrasonic sensors.
- Power Jumper: Features a selector jumper to switch digital VCC power between the Arduino's internal 5V and an external power terminal block.
- Compatibility: Works directly with Arduino Uno, Mega 2560, and similar form-factor boards.
How to Use It
- Mount the Shield: Align the male header pins of the Sensor Shield V5 Expansion Board with the female headers on your powered-down Arduino board and press down firmly.
- Connect Power: Keep the power selection jumper attached if your sensors draw low power from the Arduino's 5V line. Remove the jumper if you plug an external power supply into the board's green terminal block.
- Plug Sensors: Attach 3-pin GVS (Ground, VCC, Signal) cables directly from your modules or sensors to the corresponding digital or analog pins on the shield without needing a breadboard.
Compatibility:
Arduino NG (Compatible)
Arduino Diecimila (Compatible)
Arduino Duemilanove (Compatible)
Arduino UNO (Compatible)
Packaging List:
Unit Type:piece
Package Weight:0.15kg (0.331lb.)
Package Size:16cm x 12cm x 10cm (6.30in x 4.72in x 3.94in)
Package Includes:
1x Arduino Sensor Shield V5 Expansion Board
