Product Introduction

Are you searching for the best 2-Channel Relay Module with Optocoupler Isolation in Pakistan? Your search ends here. This powerful module lets you control high-voltage devices safely with your microcontroller. We offer the premium 2-Channel Relay Module with Optocoupler Isolation at an affordable price. This module protects your valuable electronics while giving you reliable switching performance.

The 2-Channel Relay Module with Optocoupler Isolation uses optical isolation technology to separate your control circuit from the high-power load . This smart design protects your Arduino, Raspberry Pi, or ESP32 from voltage spikes and electrical noise . The 2-Channel Relay Module with Optocoupler Isolation ensures your microcontroller stays safe while it controls lights, fans, motors, and appliances.

Why do students and professionals across Pakistan choose the 2-Channel Relay Module with Optocoupler Isolation? The answer lies in its perfect combination of safety and versatility. This module handles loads up to 250V AC at 10A per channel . You can control two devices independently with the 2-Channel Relay Module with Optocoupler Isolation, making it ideal for home automation and industrial projects.

The 2-Channel Relay Module with Optocoupler Isolation offers simple screw terminal connections for your load wiring . Each channel includes Normally Open (NO), Normally Closed (NC), and Common (COM) terminals. This gives you flexibility in how you connect your devices. The 2-Channel Relay Module with Optocoupler Isolation also features status LEDs for each relay. You can see at a glance which channels are active.

We understand the needs of the Pakistani market. We stock the 2-Channel Relay Module with Optocoupler Isolation in large quantities. Our boards use high-quality Songle relays with a lifespan of over 100,000 operations . The 2-Channel Relay Module with Optocoupler Isolation features double FR-4 circuit board construction for enhanced durability . Each unit undergoes quality testing before we ship it.

The 2-Channel Relay Module with Optocoupler Isolation supports both 3.3V and 5V logic levels . This makes it compatible with all popular microcontrollers. You can trigger the 2-Channel Relay Module with Optocoupler Isolation with a simple low-level or high-level signal. The 2-Channel Relay Module with Optocoupler Isolation includes mounting holes for secure installation in your projects.

Check the 2-Channel Relay Module with Optocoupler Isolation today. We deliver across Lahore, Karachi, Islamabad, and all of Pakistan. Build smart automation systems with confidence. Order the 2-Channel Relay Module with Optocoupler Isolation now and control your world safely.

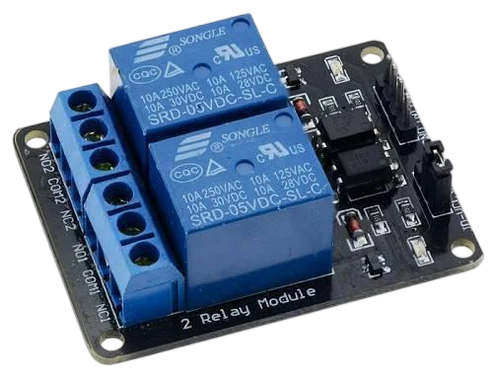

2-Channel Relay Module with Optocoupler Isolation

2️⃣ Key Features

• Control two high-voltage devices independently with a single module

• Protect your microcontroller with built-in optocoupler isolation technology

• Switch loads up to 250V AC at 10A per relay channel

• Connect devices easily using secure screw terminal blocks

• See relay status instantly with dedicated LED indicators per channel

• Trigger relays with either high-level or low-level signals

• Use with 3.3V and 5V microcontrollers like Arduino and ESP32

• Install securely with pre-drilled mounting holes on the board

• Choose from Normally Open, Normally Closed, or Common connections

• Rely on stable triggering with minimal current draw

• Build durable projects with high-quality FR-4 circuit board material

• Power the module easily with a standard 5V DC supply

• Enjoy fast response times for real-time control applications

• Reduce wiring complexity with clearly labeled input and output terminals

• Isolate your control circuit completely from high-voltage loads

• Save money with an affordable, professional-grade relay solution

• Protect against back EMF with flyback diode protection

• Mount the module securely in enclosures or on panels

• Monitor power status with the onboard power indicator LED

• Expand your projects with two independent switching channels

3️⃣ Advanced Features

• Implement sophisticated home automation systems with IoT compatibility

• Integrate the module into cloud-based platforms like Blynk and Home Assistant

• Design remote control systems with mobile app integration

• Build industrial automation prototypes with PLC compatibility

• Develop fail-safe systems using both NC and NO contacts

• Automate scheduled switching for energy management applications

• Create security systems that trigger alarms and lights simultaneously

• Program precise timing sequences for irrigation and lighting systems

• Interface with environmental sensors for intelligent climate control

• Design smart appliances with remote control functionality

• Implement emergency shutdown mechanisms in critical systems

• Develop multi-stage process control for manufacturing demonstrations

• Create interactive exhibits with responsive device control

• Automate greenhouse environmental systems with multiple outputs

• Design energy monitoring and control systems

• Implement logic-based decision making with two-channel feedback

• Develop automated testing equipment with device switching

• Create custom IoT gateways for legacy appliance control

• Design failsafe systems with normally closed contacts for safety

• Automate office and commercial building systems

4️⃣ Frequently Asked Questions

Q1: What is a 2-Channel Relay Module with Optocoupler Isolation?
Answer: A 2-Channel Relay Module with Optocoupler Isolation lets your microcontroller safely control high-voltage devices. It uses optical isolation to protect your control circuitry from voltage spikes and electrical noise .

Q2: What voltage loads can this relay module switch?
Answer: The relay handles up to 250V AC at 10A or 30V DC at 10A per channel . This makes it suitable for controlling lights, fans, motors, and appliances.

Q3: What microcontrollers work with the 2-Channel Relay Module with Optocoupler Isolation?
Answer: The module works with Arduino, Raspberry Pi, ESP8266, ESP32, and other 3.3V or 5V logic microcontrollers .

Q4: What is the difference between NO, NC, and COM terminals?
Answer: COM is the common terminal. NO (Normally Open) connects to COM when the relay is active. NC (Normally Closed) connects to COM when the relay is inactive .

Q5: Do I need external components to use this relay module?
Answer: No, the module is ready to use. Just connect your microcontroller pins, power supply, and load devices. The optocoupler and protection diodes are already built-in .

Q6: How do I know if the relay is activated?
Answer: Each channel has a dedicated status LED. The LED lights up when the relay activates, so you can see the status at a glance .

Q7: Where can I buy a 2-Channel Relay Module with Optocoupler Isolation in Pakistan?
Answer: Purchase from our online store with delivery across Pakistan. We serve Lahore, Karachi, Islamabad, and all major cities.

Q8: Does this module support high-level and low-level triggering?
Answer: Yes, the module supports both triggering modes. You can configure it via jumper settings for high-level or low-level activation .

Q9: How long do the relays last?
Answer: The relays have a lifespan of over 100,000 switching operations under normal use . This ensures long-term reliability for your projects.

Q10: Can I control motors and pumps with this relay module?
Answer: Yes, you can control motors and pumps up to 10A. The module protects your microcontroller from back EMF generated by inductive loads .

5️⃣ Where It Can Be Used

1. Home Automation: Control lights, fans, and appliances from your smartphone

2. Smart Irrigation: Activate water pumps and solenoid valves automatically

3. Industrial IoT: Automate machinery and equipment in manufacturing setups

4. Security Systems: Trigger alarms, cameras, and access control devices

5. Robotics: Control actuators and motorized mechanisms

6. Greenhouses: Manage heating, ventilation, and irrigation systems

7. Energy Management: Switch devices on and off for power savings

8. DIY Projects: Build interactive installations and experimental devices

9. Educational Labs: Teach microcontroller programming and automation

10. Remote Control Systems: Create app-controlled and web-enabled devices

6️⃣ How to Use

Setup Instructions

Using the 2-Channel Relay Module with Optocoupler Isolation is straightforward. Start by connecting the VCC pin to your 5V power supply. Connect GND to the ground . Then connect the IN1 pin to a digital output pin on your microcontroller. Connect IN2 to another digital output pin .

Next, connect your load device to the relay terminals. Connect the active wire to the COM terminal. Connect your device to the NO terminal for normally open operation. Alternatively, connect it to NC for normally closed operation . Ensure all connections are tight and secure.

Write your microcontroller code to control the relay. Send a HIGH signal to activate the relay in high-level trigger mode. Send a LOW signal to deactivate it. The status LED will light up when the relay activates .

Safety Tips

Always disconnect power before making wiring changes. Do not exceed the relay's 10A current rating. Use appropriate gauge wire for your load current. Keep high-voltage wiring away from low-voltage control circuits. Ensure your power supply can handle the load current. Never touch the output terminals while power is applied.

Maintenance Guidance

Keep the module clean and free from dust. Check screw terminal connections periodically for tightness. Replace the module if the relay contacts show signs of wear. Store in a dry place when not in use. Avoid exposing the module to moisture or extreme temperatures.

7️⃣ Advantages

1. Safety First: Optocoupler isolation protects your microcontroller

2. Reliable Switching: High-quality relays last over 100,000 operations

3. Easy Installation: Simple wiring with screw terminals and clear labels

4. Versatile: Works with 3.3V and 5V microcontrollers

5. Dual Control: Controls two independent devices simultaneously

6. Visual Feedback: Status LEDs show relay activation instantly

7. Cost-Effective: Affordable solution for automation projects

8. Flexible Mounting: Includes pre-drilled holes for secure installation

9. Protected: Built-in flyback diodes for inductive loads

10. Widely Used: Trusted by students and professionals across Pakistan

8️⃣ Disadvantages

1. Power Required: Needs a separate 5V power supply

2. Current Limit: 10A limit restricts use with very high-power devices

3. Mechanical Wear: Relays have limited mechanical lifespan

4. Audible Click: Relay switching produces an audible clicking sound

5. Heat Generation: May get warm under high load conditions

6. Slower Switching: Mechanical relays switch slower than solid-state relays

7. Physical Size: Takes up more space than smaller relay alternatives

8. Bounce Effect: Relay contacts may bounce during switching

9. Initial Jumper Setup: Trigger mode jumper may confuse beginners

10. No Isolated Power: Some versions share power supply between control and load circuits

9️⃣ City-Wise Sales Coverage in Punjab

We proudly deliver the 2-Channel Relay Module with Optocoupler Isolation to customers across Punjab. This essential automation module is available in all major cities including Lahore, Faisalabad, Rawalpindi, Multan, Gujranwala, Sialkot, Bahawalpur, Sargodha, Rahim Yar Khan, Sheikhupura, Jhang, Dera Ghazi Khan, Gujrat, Okara, Kasur, Sahiwal, Khanewal, Chiniot, Pakpattan, and Vehari. Get fast delivery and genuine quality in your city today. Order now and start building your smart automation system.
