Product Introduction

Do you need powerful, precise motion control for your robotics projects? The MG996R Metal Gear Servo Motor 180 Degree For Arduino delivers exceptional torque and durability in a compact package. This high-performance servo motor gives your projects the muscle they need to lift, rotate, and position with precision.

The MG996R Metal Gear Servo Motor 180 Degree For Arduino features all-metal gearing that provides outstanding strength and longevity. Unlike plastic-geared servos that strip under pressure, this servo handles demanding applications with ease. The metal gears resist wear and maintain precise positioning even under heavy loads .

What makes the MG996R Metal Gear Servo Motor 180 Degree For Arduino stand out? It delivers up to 11 kg-cm of stall torque at 6V, making it one of the most powerful standard-size servos available . This torque lets you lift heavier objects, build stronger robotic arms, and create more capable RC vehicles. Whether you are a university student in Lahore or a professional developer in Karachi, this servo handles your toughest projects.

Pakistani makers and engineers trust the MG996R Metal Gear Servo Motor 180 Degree For Arduino for their critical applications. Available at competitive prices across Pakistan, this servo offers exceptional value for robotics, automation, and RC projects. The 180-degree rotation gives you full range of motion for most applications .

The MG996R Metal Gear Servo Motor 180 Degree For Arduino operates on 4.8V to 7.2V, making it compatible with Arduino and most development boards . The digital control system provides faster response and better holding power than analog servos. The redesigned PCB and IC control system delivers improved accuracy over its predecessor, the MG995 .

Durability matters in the Pakistani market, and this servo delivers. The robust construction includes upgraded shock-proofing that withstands the rigors of mobile robotics and RC vehicles . The double ball bearing design ensures smooth operation and long service life.

Affordability makes the MG996R Metal Gear Servo Motor 180 Degree For Arduino accessible to everyone. Priced competitively in Pakistan, it offers professional-grade performance without breaking the bank. You get metal gears, high torque, and digital precision at a fraction of the cost of industrial servo systems.

Join the thousands of Pakistani makers who rely on the MG996R Metal Gear Servo Motor 180 Degree For Arduino for their projects. From robotic arms in university labs to RC cars on racing tracks, this servo powers innovation across Pakistan. Get yours today and add powerful, precise motion to your projects.

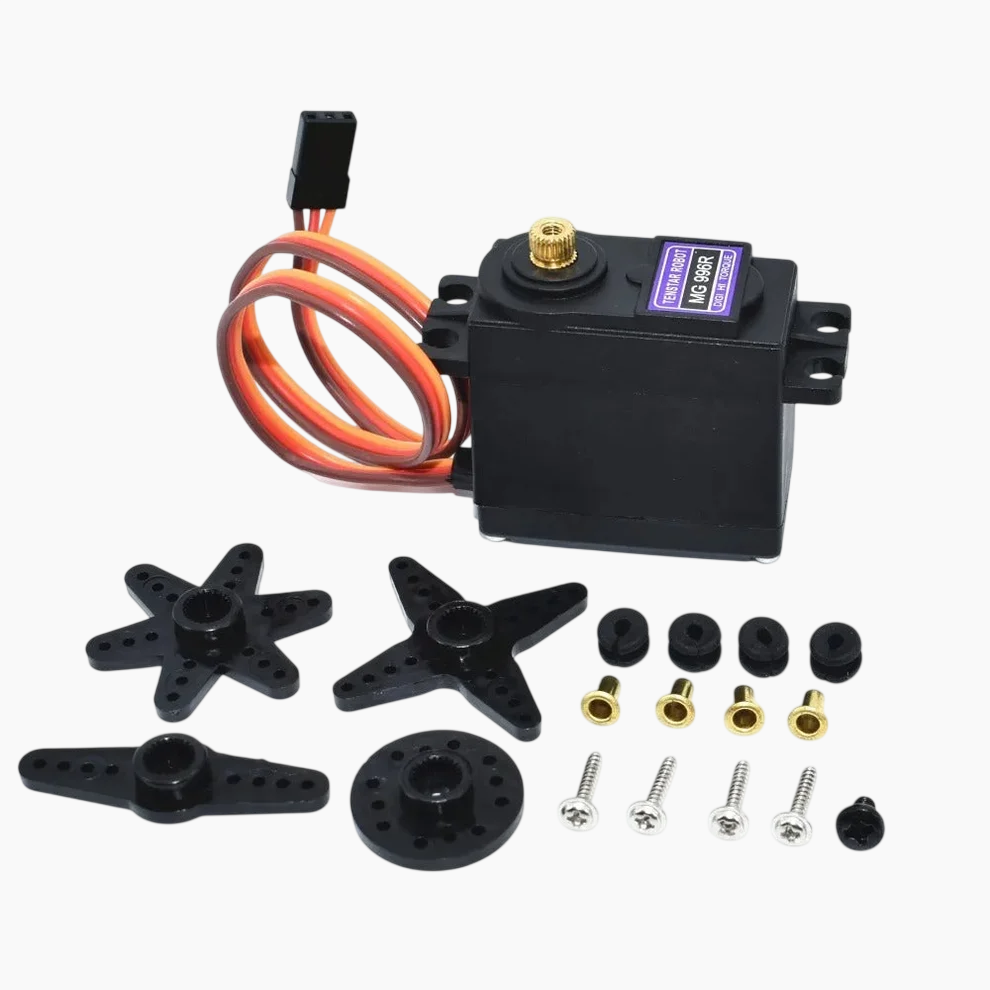

MG996R Metal Gear Servo Motor 180 Degree For Arduino

2️⃣ Key Features

1. Delivers up to 11 kg-cm of stall torque at 6V for powerful motion control .

2. Features all-metal gears that resist wear and handle heavy loads .

3. Rotates a full 180 degrees for complete range of motion .

4. Operates on 4.8V to 7.2V for broad compatibility with microcontrollers .

5. Responds quickly with 0.14 to 0.17 seconds per 60 degrees of rotation .

6. Includes a double ball bearing design for smooth, reliable operation .

7. Connects easily with a standard 3-pin female header .

8. Works with Arduino, Raspberry Pi, and most development boards .

9. Provides digital control for faster response and better holding power .

10. Resists shock and vibration with upgraded shock-proofing .

11. Includes a 30cm wire for flexible installation .

12. Weighs only 55g while delivering heavy-duty performance .

13. Measures 40.7 x 19.7 x 42.9mm for compact installation .

14. Comes with a selection of servo horns and mounting hardware .

15. Features improved dead bandwidth for precise centering .

16. Protects internal components with a sturdy plastic case .

17. Handles high current applications with a 2.5A stall current rating .

18. Works with most standard receivers including Futaba, Hitec, and GWS .

19. Saves development time with the Arduino Servo library .

20. Performs reliably in temperature ranges from 0°C to 55°C .

3️⃣ Advanced Features

1. Integrates a redesigned PCB and IC control system for improved accuracy over the MG995 .

2. Features a digital amplifier that provides faster response to control signals .

3. Implements improved dead bandwidth of just 1us for precision positioning .

4. Provides coreless motor technology for faster acceleration and response.

5. Includes heavy-duty 300mm wire with robust insulation .

6. Supports PWM signal control for easy integration with microcontrollers .

7. Features upgraded gearing that improves centering accuracy .

8. Delivers consistent torque throughout the servo travel range .

9. Operates with a no-load current of just 170mA for energy efficiency .

10. Includes excellent holding power that maintains position under load .

11. Supports quick response times for dynamic applications .

12. Features a tight plastic case that offers water and dust resistance .

13. Provides smooth operation with minimal gear play.

14. Includes JR servo plug that also fits Futaba connectors .

15. Supports accurate positioning with high resolution .

16. Features robust construction that handles continuous operation.

17. Includes CNC aluminum steering horn for high-power applications .

18. Operates with fast control response for real-time projects.

19. Provides constant torque that maintains performance under varying loads.

20. Features excellent value with professional-grade performance at an affordable price.

4️⃣ Frequently Asked Questions

Q1: What is the MG996R servo motor used for?

Answer: The MG996R Metal Gear Servo Motor 180 Degree For Arduino powers robotics, RC vehicles, robotic arms, and automation projects requiring high torque and precise positioning .

Q2: What voltage does the MG996R require?

Answer: The servo operates on 4.8V to 7.2V DC. At 6V, it delivers up to 11 kg-cm of torque .

Q3: Does the MG996R really rotate 180 degrees?

Answer: Yes, this version rotates 180 degrees with a 500-2500µs pulse width. Standard 1000-2000µs pulses give about 90 degrees .

Q4: Is the MG996R compatible with Arduino?

Answer: Yes, it works perfectly with Arduino using the standard Servo library. Connect the signal wire to a PWM pin like pin 9 or 10 .

Q5: What current does the MG996R draw?

Answer: The stall current can reach 2.5A at 6V, so we recommend using an external power supply for heavy applications .

Q6: What makes the MG996R different from the MG995?

Answer: The MG996R features upgraded shock-proofing, a redesigned PCB, improved IC control, and better gearing for more accurate operation .

Q7: Does the MG996R come with mounting hardware?

Answer: Yes, it includes a selection of servo horns, screws, and mounting hardware for different applications .

Q8: Can I use the MG996R for my RC car?

Answer: Absolutely! It works great for steering or throttle control in trucks, boats, racing cars, and helicopters .

Q9: Where can I buy the MG996R in Pakistan?

Answer: The MG996R Metal Gear Servo Motor 180 Degree For Arduino is available through electronics retailers across Pakistan with online ordering options.

Q10: What happens if I stall the servo?

Answer: Operating the servo at stall torque reduces its lifespan and can permanently damage it. We recommend staying within its rated torque limits .

5️⃣ Where It Can Be Used

1. Robotic Arms – Build powerful robotic manipulators that lift and position objects .

2. RC Vehicles – Control steering, throttle, or mechanical functions in cars, trucks, and boats .

3. Hexapod Robots – Power the legs of multi-legged walking robots .

4. Camera Gimbals – Create stabilized camera mounts for photography and videography.

5. Educational Projects – Students use the servo for robotics and automation coursework .

6. Industrial Automation – Prototype mechanical systems and control mechanisms.

7. Drone Mechanisms – Control payload release or camera tilt on UAVs.

8. Automated Doors – Build remote-controlled or sensor-activated door systems.

9. 3D Printer Modifications – Upgrade extruder or bed leveling mechanisms.

10. Makerspace Projects – Community workshops use the servo for diverse creation projects.

6️⃣ How to Use

Setting up your MG996R Metal Gear Servo Motor 180 Degree For Arduino takes just minutes. Follow these steps and start controlling motion in your projects.

Step 1: Identify the Pins
The servo has three wires: Red (VCC, 5V), Brown or Black (GND), and Orange or Yellow (Signal) . The signal wire connects to your microcontroller's PWM pin.

Step 2: Provide Adequate Power
The MG996R draws significant current, especially under load. For testing, you can power it from your Arduino's 5V pin, but for heavier applications, use an external 5V-6V supply capable of delivering 2-3A . Always connect the grounds together for stable operation.

Step 3: Connect to Arduino
Wire the servo to your Arduino:

• Connect Red to Arduino 5V

• Connect Brown to Arduino GND

• Connect Orange to a PWM-capable pin like 9 or 10

Step 4: Upload the Code
Open the Arduino IDE and include the Servo library. Use this example code:

#include <Servo.h>
Servo myServo;
int servoPin = 9;

void setup() {
    myServo.attach(servoPin);
}

void loop() {
    myServo.write(0);   // Move to 0 degrees
    delay(1000);
    myServo.write(90);  // Move to 90 degrees
    delay(1000);
    myServo.write(180); // Move to 180 degrees
    delay(1000);
}

Step 5: Test and Calibrate
Upload the code and watch the servo move through its range. Adjust the pulse width range if needed to achieve the full 180 degrees .

Safety Tips:

• Avoid stalling the servo, as this can damage the motor

• Do not forcefully turn the servo by hand while powered

• Ensure adequate power supply for your application

• Keep fingers and objects away from moving parts

• Disconnect power before making mechanical adjustments

Maintenance Guidance:
Keep the servo clean and free from dust. Regularly check gear screws for tightness. Store in a dry location when not in use. The robust metal gears ensure years of reliable operation with proper care.

7️⃣ Advantages

1. High Torque – Delivers up to 11 kg-cm at 6V, handling heavy loads easily .

2. Metal Gears – All-metal construction prevents stripping and ensures longevity .

3. Digital Control – Faster response, better holding power, and improved precision .

4. 180-Degree Range – Full motion range for versatile applications .

5. Broad Compatibility – Works with Arduino, Raspberry Pi, and most microcontrollers .

6. Durable Construction – Shock-proof and built to withstand demanding conditions .

7. Easy Integration – Standard servo connection and existing libraries simplify development .

8. Compact Size – Standard servo dimensions fit most applications .

9. Affordable Price – Professional performance at a budget-friendly cost .

10. Wide Application Range – Suitable for robotics, RC, and automation projects.

8️⃣ Disadvantages

1. High Current Draw – Stall current up to 2.5A requires adequate power supply .

2. Weight – 55g heavier than smaller micro servos .

3. Noise – Metal gears can produce noticeable sound during operation.

4. Power Sensitivity – Requires stable voltage for consistent performance.

5. Not Continuous Rotation – Limited to 180 degrees movement .

6. Potential Gear Backlash – Metal gears may develop slight play over time.

7. Heat Generation – Extended heavy use can cause warming.

8. Stall Damage Risk – Stalling can permanently damage the servo .

9. Pulse Width Limitations – Requires custom pulse widths for full 180-degree range .

10. Quality Variations – Different manufacturers may produce varying quality levels.

9️⃣ City-Wise Sales Coverage in Punjab

The MG996R Metal Gear Servo Motor 180 Degree For Arduino is available across all major cities in Punjab. Robotics enthusiasts and engineers in Lahore and Faisalabad can access this essential component quickly and affordably. Our network serves the growing maker communities in Rawalpindi, Multan, and Gujranwala, ensuring fast delivery and competitive pricing. Customers in Sialkot, Bahawalpur, and Sargodha receive the same premium service and support. We also cover Rahim Yar Khan, Sheikhupura, Jhang, and Dera Ghazi Khan with reliable stock. Our distribution reaches Gujrat, Okara, Kasur, Sahiwal, Khanewal, Chiniot, Pakpattan, and Vehari. Wherever you are in Punjab, you can get your MG996R servo quickly and start powering your robotics and automation projects without delay.
