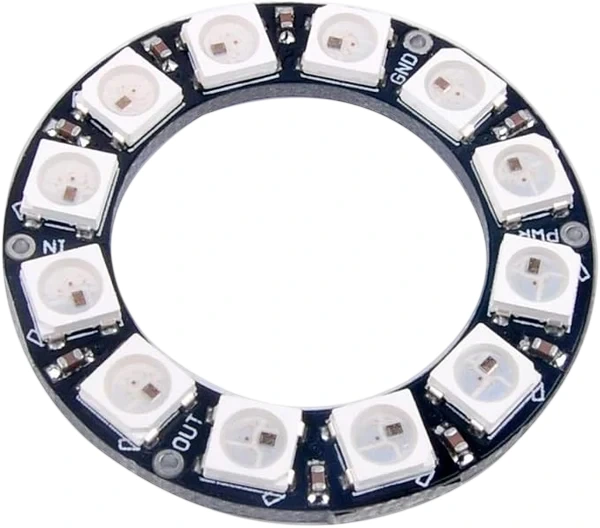

RGB LED Ring 12Bit WS2812 5050 Integrated Driver Module for Arduino | microsolution.com.pk

This 12-Bit RGB LED Ring is built with WS2812 5050 LEDs and features an integrated driver for seamless control. With 256-color depth per channel, it delivers over 16 million color variations. Whether you're building a light display, wearable tech, or a responsive visual project, this ring module brings vibrant lighting in a compact, circular form.

Key Features

• 12 Individually Addressable RGB LEDs (WS2812 5050 SMD)
• Integrated Driver Chip with Intelligent Reverse Polarity Protection
• 16.7 Million Color Output (256 brightness levels per color)
• Cascade Interface - Easily chain multiple rings together
• Data Transfer Rate: Up to 800Kbps
• Built-in Signal Shaping Circuit to prevent waveform distortion
• Voltage: DC 5V
• Size: 50mm Outer Diameter, 35mm Inner Diameter
• Supports Up To: 1024 LEDs at 30FPS refresh rate

Applications

• LED wearables
• Visual effects for drones and robotics
• DIY clocks and indicators
• Interactive art installations
• Signal indicators or notification rings

How It Works

Each LED contains a built-in driver IC that receives serial data and adjusts brightness and color accordingly. With signal reshaping, the ring maintains high signal quality even when chained. The IC handles reset and brown-out conditions, ensuring reliable startup behavior every time.

Technical Specifications

• Voltage: DC 5V
• LED Type: 5050 RGB with WS2812 Integrated Driver
• Color: RGB (256x3 Color Resolution)
• Outer Diameter: 50mm
• Inner Diameter: 35mm
• Signal Frequency: 800Kbps
• Compatibility: Arduino, ESP32, STM32, etc.
